BHZ530 Contactless Payment Box

Redefining the "Hands-Free" Checkout Experience.

QR Scanning | NFC Contactless | 4G Cat.1 | PCI & EMV Certified A compact desktop powerhouse that empowers customers to self-scan and tap. With professional scan speed and standalone 4G, it’s the ultimate balance of performance and cost-efficiency.

Product In Detail

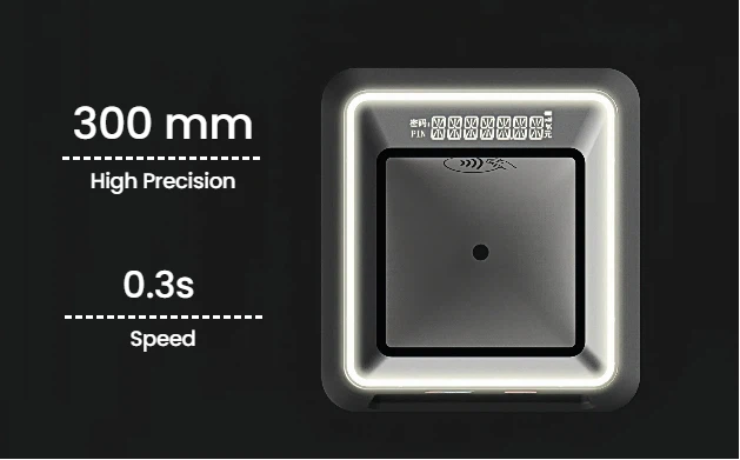

Capture Codes in a Blink

The BHZ 530 features a massive scanning window with a 0-300mm depth of field. Whether the customer’s phone is dim, cracked, or far away, the wide-angle lens captures the QR code instantly.

Wide Angle

0.3s Speed

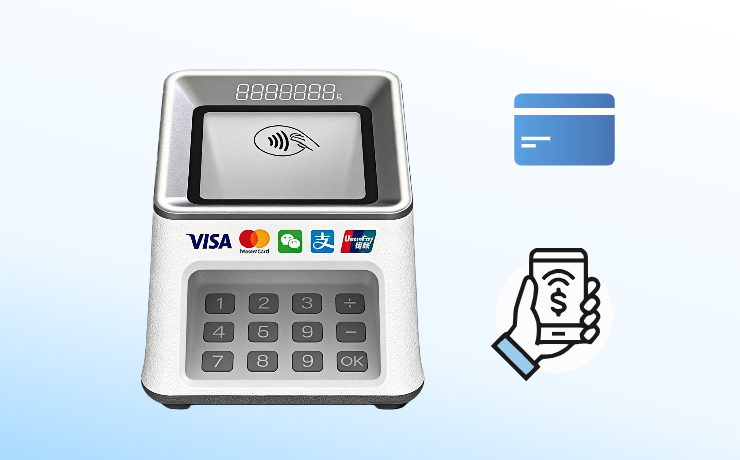

Universal Contactless Acceptance

BHZ 530 integrates a dedicated NFC reader module. It enables direct interaction with contactless bank cards and smartphone wallets without external peripherals.

NFC

Card Wave

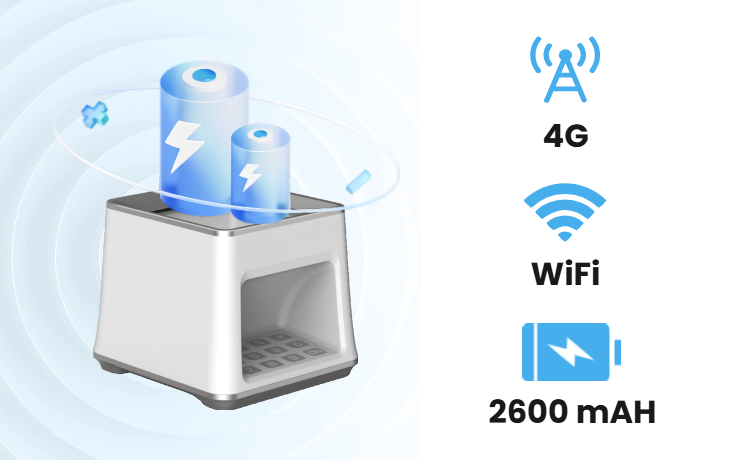

Wire-Free Deployment

Built with a 2600mAh battery and 4G LTE (Cat.1) , this device works anywhere—from pop-up stores to night markets—lasting through full shifts on a single charge.

Wifi

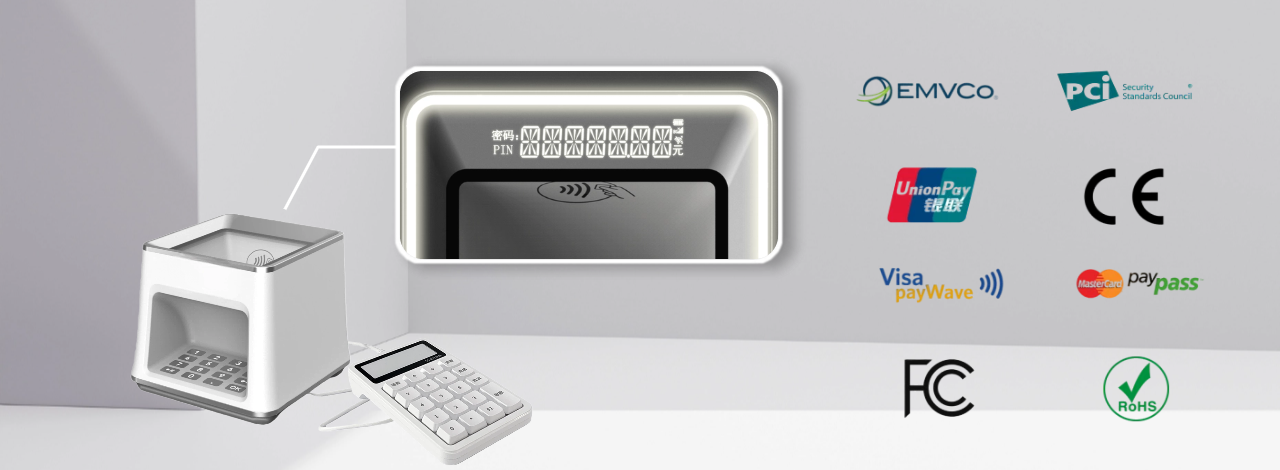

Secure PIN Enrty & Display

The BHZ 530 is a financial-grade terminal holding PCI 6.2 and EMV certifications. The numeric keypad and 1.7-inch LCD screen ensure every transaction is verified and transparent for both merchant and customer.

Scan & Tap Payments

Mobile Wallets

QR Codes

Contactless Cards

Usage Scenarios

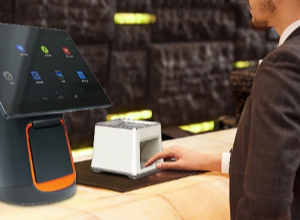

Retail & C-Stores

Speed up queues during rush hours with hands-free scanning.

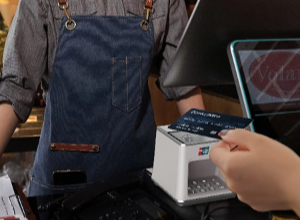

QSR & Cafes

Hygienic contactless payment for fast-food environments.

Pop-up & Events

Instant setup anywhere with 4G connectivity—no Wi-Fi needed.

QSR & Cafes

Hygienic contactless payment for fast-food environments.

Solution Advantage

Accelerating Mass-Market Payment Digitalization. Why leading Acquirers & Telcos choose our “Lightweight IoT” portfolio.

End-to-end solution

We streamline your supply chain. From pre-configured hardware and IoT SIM connectivity to a centralized Device Management Platform , we deliver a distinctive "plug-and-play" experience.

Accelerate Acceptance Networks

Deploy essential QR & NFC payments to mass-market SMEs at a fraction of the cost of traditional POS terminals. Maximize market penetration with minimal hardware subsidy

Instant Pop-Up Deployment

With pre-installed 4G IoT connectivity and batteries, these devices require no wiring, no Wi-Fi configuration, and no professional installation. Merchants simply turn them on and start collecting payments.

Drive Data Plan Retention

Transform passive connectivity into active business value. Bundle this essential payment terminal with B2B broadband packages to increase SIM card activation rates and client stickiness.

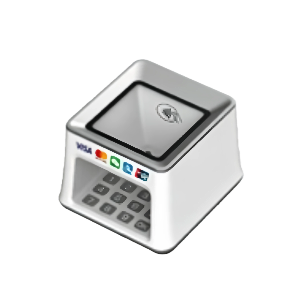

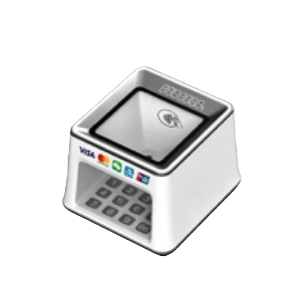

Optional

NFC Version

Standard Version

NFC Version

Standard Version

Technical Specification

CPU

32-bit High Performance Security Processor

Display

1.7-inch Screen (Displays ASCII/Digits, with Backlight)

Connectivity

4G (Cat.1) |WiFi（2.4G）

NFC Contactless Reader

Contactless Reader (Integrated) Standards: EMV/PBOC Contactless, ISO 14443 Type A/B, Mifare®

Battery

2600mAh Capacity

Scanner

1D/2D Barcode Scanner Depth of Field: 0~300mm Precision: 1D ≥5mil, 2D ≥10mil

Interface

1 X USB

Audio/Speaker

Buzzer (Standard), Optional Speaker

Physical Keys

Digital Keypad (0-9, Enter, Delete) Security: Supports 3DES, RSA, SHA, ANSI X9.9/9.8, SM2/3/4 Algorithms

Physical

Dimensions: 102(L) x 113(W) x 92(H) mm Weight: 290g

Certifications

EMV CL L1, PayWave, PayPass, PCI 6.2 QPBOC 3.0 L1, qUICS, UPTS 3.0, CCC, Telecom Licenses

Environment

Operating: -10°C ~ 45°C Storage: -20°C ~ 70°C
